The gaps are designed right into the shrouds to make them cool better.... :lmao:



Just kidding, they are welded up now, new pics will follow.
Cheers

Nice looking installation Andeas.

I have a querey that is open to all to respond:
In a horizontal installation like Andeas' the belt twists 90deg between bottom pully and the idler pulleys, then it twists 90deg again between the idler pulley and the fan. If the idler pully were set at an angle then the belt would not be required to twist as much. The idler pully would however, be required to be tangential to the bottom pulley (and the fan?) so that would restict its location to <45 deg (the ideal angle) but I would expect that any reduction in twist would have been beneficial for belt and idler bearing longevity. Just a thought?

Clive

Cheers Clive,

Understand your point and you are probably right but that would mean you would have to space the idler pulleys further apart. There could be clearance issues with the distributor, possibly requires a larger bottom pulley and of course a longer belt. Larger idler pulleys could be beneficial. Would be interresting to see how it works, although probably not as compact. But then again, getting 20.000 Km's out of the belt as it is in this configuration is good enough for me ;)

I agree it would not look so elegant and certainly the wider idler pulleys might be in the way since to get any real improvement they would have to be engine width apart? Alternatively, you could substitute a bevel gear for the engine
pulley and then you would only need a pair of horizontal pulleys.......................... And then onto theoretical Physics..

This is what Chris at Tangerine Racing is doing with his version.

http://www.tangerineracing.com/whats_new.htm

His product are of the finest quality and just a good person to do business with.

Unfortunately, that alternator mount will not fit any bug, T1 bus or Ghia application...

I've been following his build on 914club.com an do like the idea of an aluminum shroud.

Sandeep

Typ Vier how long did it take you to develop that shroud?
It looks amazing!!

Oldskool. made my first one with steel plate, steel pulleys and fibreglass shrouds in '91. My dad had his a year earlier so it basically evolved from what he has started.
This one does not really take that long to do, its just time is precious at the moment. I'd start a little production run if I had the time.

Hey did you find time yet? ^^^ ;)

Corvair or Reichert-style horizontal fan setups are perfectly possible on T1 etc, Chris' 914 setup has the alternator THERE as the SCCA rules require it to be in the stock 914 location.
(same SCCA rules say nothing on where the cooling fan goes/works or even exists, most of the F-prod 914 setups use ram air via flex sewer pipes from the headlight holes.)
LA Performance in the UK still makes T4 upright fan housing using teh 911 fan, a T1 shouldn't be impossible or even any harder.
(I started fabbing a corvair-fan one myself awhile back, then got sidetracked... now I'm considering running a T1 fan upside down//backwards to suck air from the bottom 8-0 )

Is there anyway i can get access to, or somehow see the pics throughout this thread? I want to see them so badly!!
(I just bought my first type 4 and it's got a FAT setup)

Any headway on these shrouds?

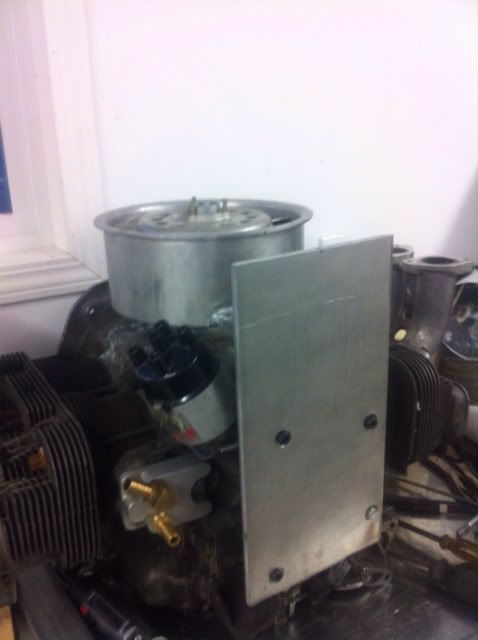

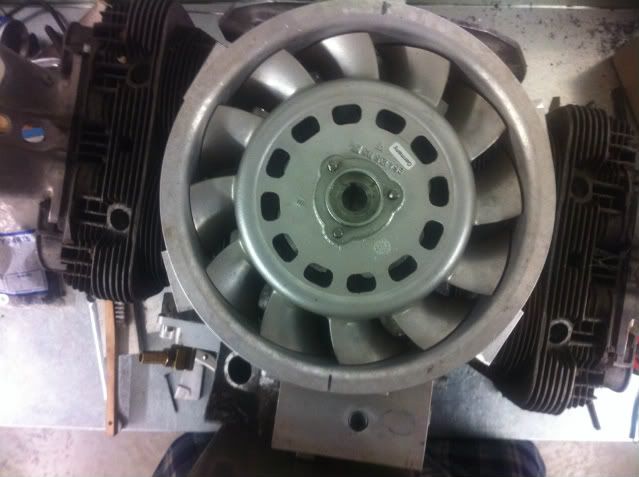

The making of a shroud/cooling system


http://i275.photobucket.com/albums/j...5.jpg~original
http://i275.photobucket.com/albums/j...1.jpg~original
http://i275.photobucket.com/albums/j...f.jpg~original
http://i275.photobucket.com/albums/j...5.jpg~original
http://i275.photobucket.com/albums/j...e.jpg~original
http://i275.photobucket.com/albums/j...0.jpg~original
http://i275.photobucket.com/albums/j...4.jpg~original
It can be made just takes some time!!!
will post more pics as I get other pieces done. Dave

has anyone made any more progress?
