liking the build. keep up the good work.

Looking good. Love the shifter ;-)

Exhaust tucks up nice and high, a good move.

Purdy!!!

Obviously :)

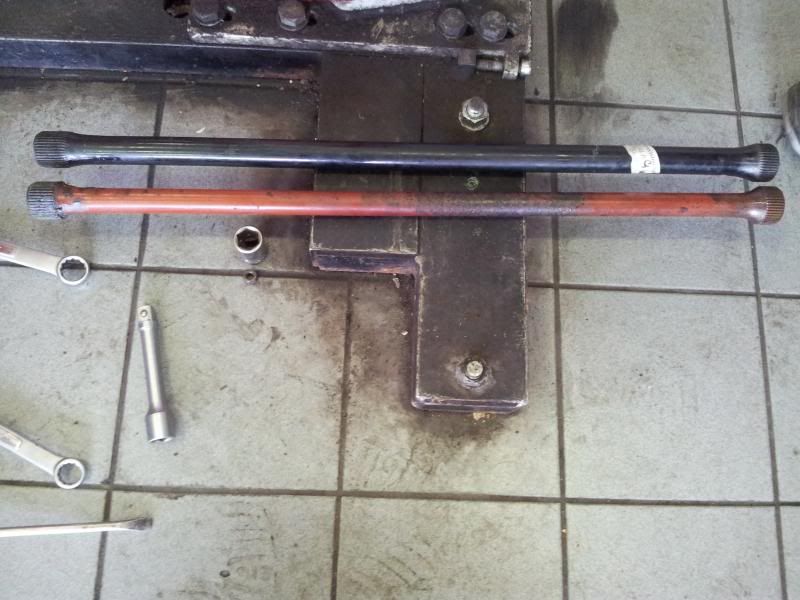

I managed to find a set of 25.5mm torsion bars from a 944 M030, I hope they will be fine with the "heavy" type4 in the back.
http://i110.photobucket.com/albums/n...c.jpg~original
http://i110.photobucket.com/albums/n...b.jpg~original

Berg-style mid mount:
http://i110.photobucket.com/albums/n...6.jpg~original
http://i110.photobucket.com/albums/n...d.jpg~original
Would be better to put in front, but the previous owner used a similar mount, thus he has already changed the bolts to longer ones, but this way :-/ So I need the rubber mounts to be releasable otherwise tranny can't be taken out.

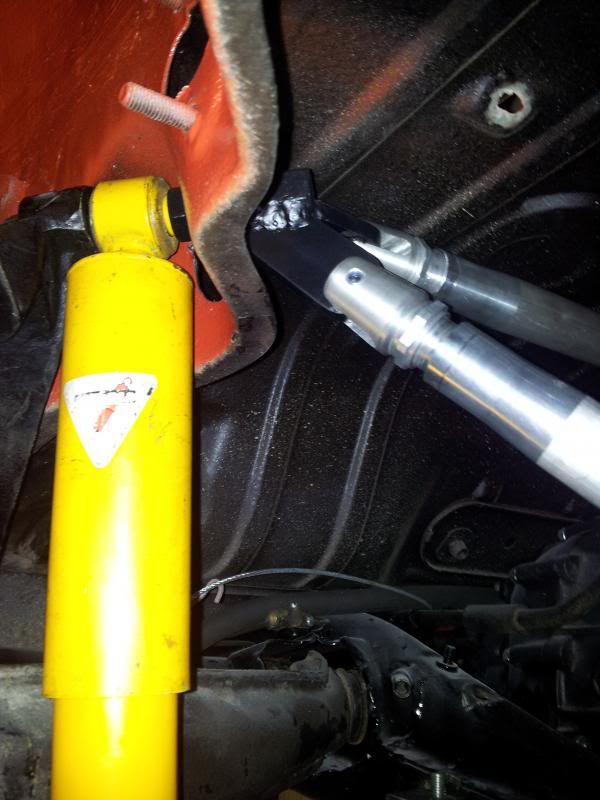

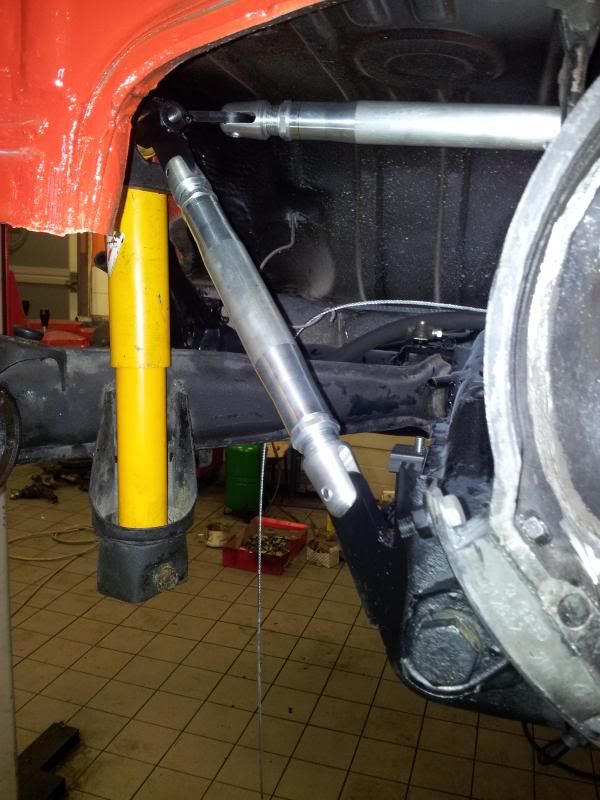

Installed the cup brace as well. 3 braces weight 1 kg together, while the 6 little ears weight nearly 2 kgs! Due to weight reduction and aestetichs the ears were cut a bit.
http://i110.photobucket.com/albums/n...7.jpg~original
http://i110.photobucket.com/albums/n...6.jpg~original
http://i110.photobucket.com/albums/n...9.jpg~original
http://i110.photobucket.com/albums/n...c.jpg~original
http://i110.photobucket.com/albums/n...c.jpg~original

Fits nice with the Rancho:
http://i110.photobucket.com/albums/n...e.jpg~original
http://i110.photobucket.com/albums/n...e.jpg~original

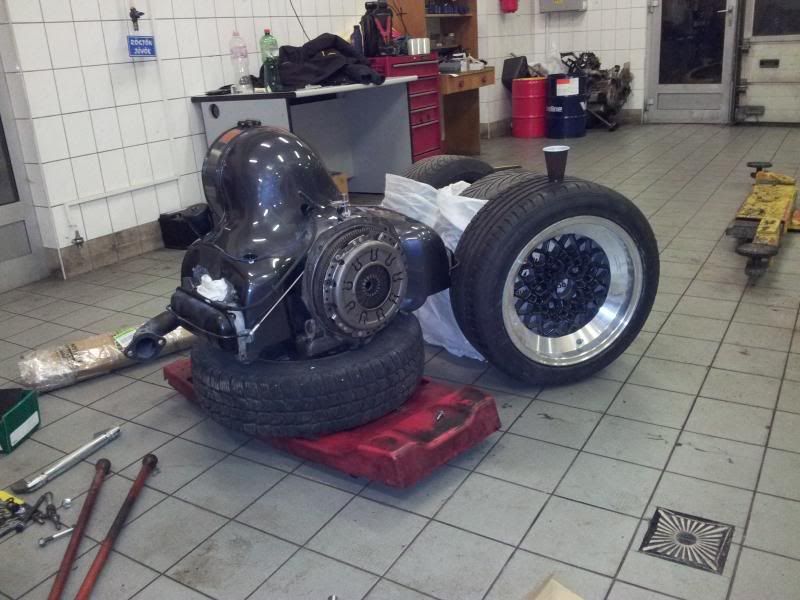

However the Rancho unit is already machined to accept a bigger flywheel, the 228mm is still too big, so we had no choice...it is still not OK, when all the screws are tightened the engine won't turn around :rolleyes: next time I'll figure it out.
http://i110.photobucket.com/albums/n...f.jpg~original

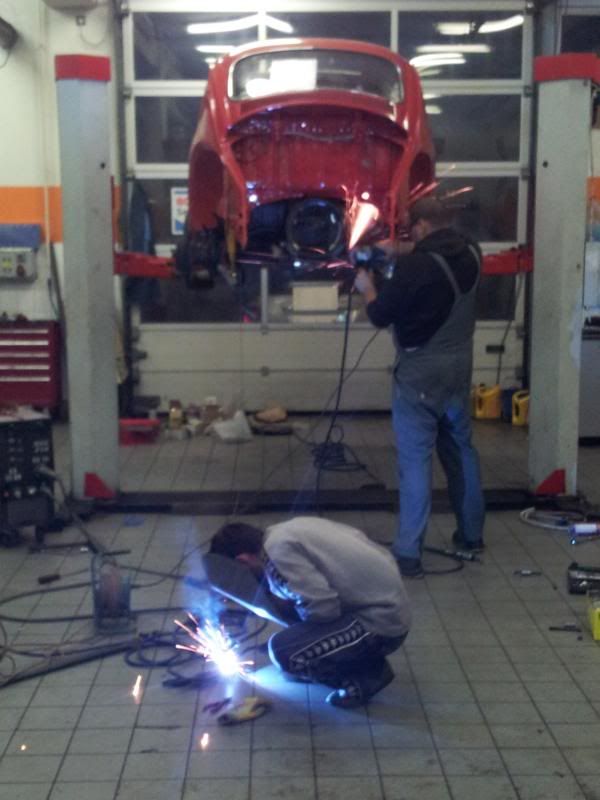

Friends are welding and grinding
http://i110.photobucket.com/albums/n...2.jpg~original

Coffee break
http://i110.photobucket.com/albums/n...1.jpg~original
http://i110.photobucket.com/albums/n...5.jpg~original

Result of the day
http://i110.photobucket.com/albums/n...a.jpg~original

Has any of you ever changed the pilot bearing in the type4 crankshaft to accept better the input shaft of the type1 tranny? It seems just too short for me..thanks

i just left mine in the crank. i drilled out my flywheel to accept a new pilot bearing.

Do you have pictures of this?

heres my build thread on stf when i orginally put my wbx in my other super. if you look closely in the pics you can see the brass bushing in the 200mm flywheel im using now. same flywheel as a type4 converted into a type1 tranny.

http://www.shoptalkforums.com/viewto...38817&start=30

Hi

Just buy a new pilot bearing from any air cooled VW, there all the same size and have the flywheel centre turned to accept it.

Steve

Thanks for the info guys! Will do it ASAP.

An other how to question, this time about the front oil cooler. Tubes will go under the chassis, but still not sure about the front area. I want to put them as high as possible without interfering with the suspension parts. Any ideas are welcome (picture worth more than thousand words). Thanks

I wasn't happy enough, so it was time to make decision about the interior. All black would be the easiest but not for a summer car. I was looking for something unusual but period correct. Finally I voted on the tartan/plaid interior, like Porsche did in the 70's. The more I see it the more I like it.

Original Porsche fabric is $$$ and none of them is for my taste, but tons of other colors are available. Finally I chose the original "Royal tartan", this package arrived from the UK a few days ago. Can't wait to see it.

http://i110.photobucket.com/albums/n...5.jpg~original
http://i110.photobucket.com/albums/n...6.jpg~original

A bit off topic, but you might be interested in. A local oldtimer show with very different cars. Will upload my pics as will.

Official galleries:

http://galeria.totalcar.hu/magazin/2...urrpic=4363726

http://galeria.totalcar.hu/kozelet/2...urrpic=4364376
